BTL-08 Win Ergo
User-friendly software for 12-channel stress test

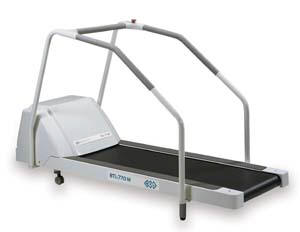

monitoring Communication with a range of treadmills and
ergometers Pre-programmed protocols, such as Balke, Chung,
Bruce and Naughton Stress curve ,
examination ,
evaluation ,
print Full and/or shortened diagnosis- Interpretation in words Online ECG averaging Digital filtration Online help A4 print
|
 |
| |
|
| Number of channels |
12 |
| Number of leads |
12 |
| PC minimum requirements |
Pentium 200MHz or higher, 800x600 resolution |
| System requirements |
Windows 95/98/2000/NT |
| Sensitivity |
5, 10, 20mm/mV |
| Time base |
25, 50mm/sec |
| Input voltage range |
±16mV |
| Max. electrode potential |
±300mV |
| A/D conversion |
12bit |
| Filtration |
Adaptable mains 50-60Hz, muscular 25, 35Hz, baseline filter 3.2, 1.9, 1.0, 0.5, 0.2sec, 'fuzzy' filtration |
| Sampling frequency |
500Hz/12 leads |
| Applicable printers |
Windows compatible |
| Mains supply |
115V/230V, 50-60Hz adapter Internal accumulator 6V, 1.2Ah |
| Connection |
RS 232 |
| Dimensions |
190 x 130 x 90mm |
| Safety standards |
IEC 601-1, IEC 601-2-25, IEC 601-1-2, IEC-1-1-4, EN 1441 |
| Protection class |
II according to IEC 536 |
| Type of applied part |
Type CF, in conformity with IEC 601-1 |
| Conformity |
93/42/EEC, class IIa |

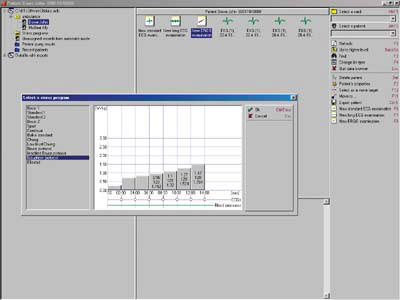

The program enables to pre-define the user's own stress curve (including
recovery stage) at regular intervals for saving 10-second long ECG
strips and for measuring blood pressure; the interval can be defined
either graphically or numerically.
The total stress test load is
automatically calculated from the graph.

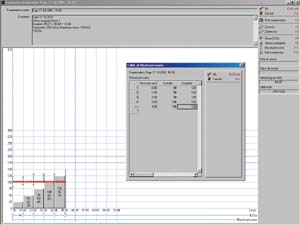

According to the patient's
condition, it is possible to set the threshold value of the pulse
rate functioning as an alarm.
|
 |
| |
|
The examination is automatically controlled according to the
specified protocol, with the possibility of modifications.

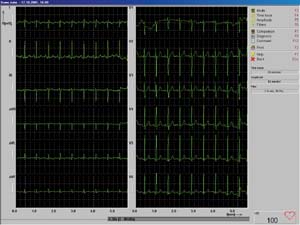

The signal monitoring runs in twelve channels simultaneously and the
measured values can be viewed in various formats.
At any moment you
can save manually a signal sample, start measuring blood pressure,
change the stress on the ergometer, or move to the recovery (post-stress)
stage of examination.
The final graph reflects performed changes.
Distinctive features include online averaging of ECG action from a
selected channel and continuous monitoring of the course of pulse
rate and ST segment.
|
 |
| |
|
The user
can view measured strips in various formats, measure intervals, compare
strips, and modify automatically measured parameters. Zooming of a
selected action enables precise measuring
|
 |
The final report includes the graph of
stress and the course of pulse rate, ST segment and blood pressure.
Sected ECG strips cane be added into the report.
For printing, choose
comparison of real and averaged actions before stress, at the peak level
of stress, after stress, or the whole stress test protocol.
The report
provides enough space for the physician's findings
|
|

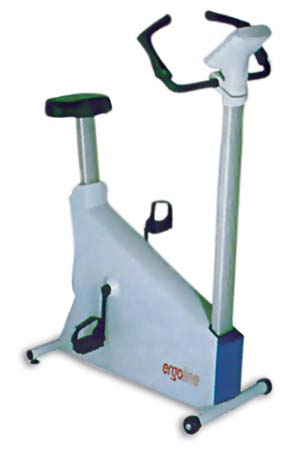

Variobike 550 - Exercise bicycleSpecifications
Work rate: 20-600W
- LCD display 115 x 86mm li>
Computer controlled eddy current brakes with
torque measurement; work independently of the number of revolutions
Revolution range: 30-130n/min-1
Accuracy of load: 3% ±3W
Time interval: 1-99min
Saddle height: continuously adjustable from 12 to
21cm
Dimensions: 40 x 82 x 130cm
Weight: 53kg
Mains supply: 115V/230V, 50-60Hz
|
 |
| |
|
|
