Ecg BTL
PRIJZEN OP AANVRAAG : info@multimedi.com
Uiterst gunstig geprijsd

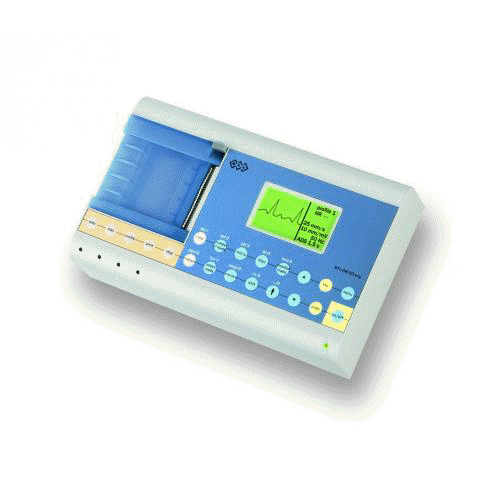

S line
|
BTL-08 SD1
|
 |
The Single Channel ECG Recorder with graphic display |
|
BTL-08 SD3 |
 |
The Three Channel ECG Recorder with graphic display. |
|
BTL-08 SD6 |
 |
The Six Channel ECG Recorder with Graphic Display. |

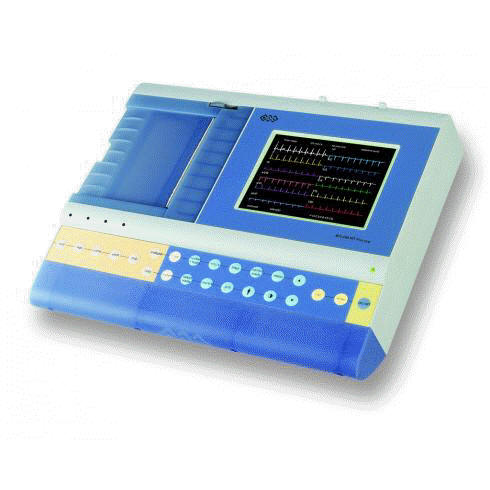

M line
| BTL-08 MD3 |
 |
The Three Channel ECG Recorder with Graphic Display |
|
BTL-08 MD |
|
The Twelve Channel ECG Recorder with Graphic Display |
|
BTL-08 MT |
 |
The Twelve Channel ECG Recorder with Touch Screen. |
- Upgrade mogelijk van BTL-08MD3 naar BTL-08MD3 met diagnose.
- Upgrade mogelijk van BTL-08MD3 naar BTL-08MD.
- Upgrade mogelijk van BTL-08MD3 naar BTL-08MD met diagnose.
- Upgrade mogelijk van BTL-08MT naar BTL-08MT met diagnose.

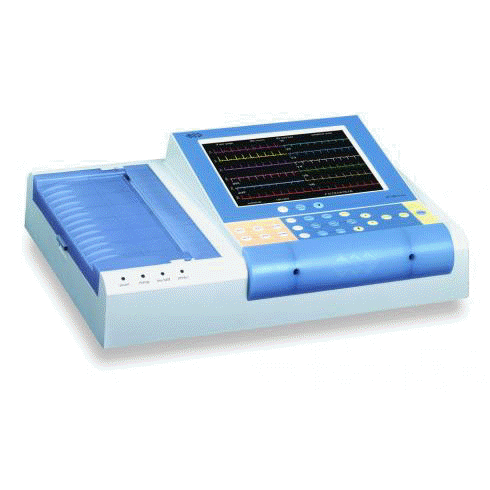

L line
|
BTL-08 LT |
 |
The Twelve Channel ECG Recorder with b/w Touch Screen designed
espetially for cardiology departments and clinics. |
|
BTL-08 LC |
 |
The Twelve Channel ECG Recorder with Colour Touch Screen designed
espetially for cardiology departments and clinics |
Upgrade mogelijk van BTL-08LT, LC
naar BTL-08LT , LC met diagnose
|
The Single Channel ECG Recorder with graphic display |
|
The summary of main features
- Compact single channel ECG with records and prints from 12 leads
- Graphic display
- Combined alphanumeric and functional keyboard
- Storing of 6 ECG records
- Mains and battery operation
- Long ECG recording
- Manual and automatic mode
- Real-time and synchro mode
- 6 user-defined profiles
- Indication of contact of each electrode
- Pacemaker detection
- Defibrillation protection
Expand your ECG with the following
options
-
Upgrade to 3-channel ECG with averaging of ECG curves
-
Full analysis and interpretation in words
Technical specifications
| Number of channels |
1 |
| Number of leads |
12 |
| Keyboard |
Combined alphanumeric and functional |
| Paper width |
58mm |
| Paper speed |
5, 10, 25, 50mm/s |
| Sensitivity |
2.5, 5, 10, 20mm/mV |
| User pre-set profiles |
6 |
| Filters |
Adaptable mains 50-60Hz, muscular 35Hz,
baseline filter 0.05Hz (3.2s), 0.11Hz (1.5s), 0.25Hz (0.6s), 0.50Hz
(0.3s),1.50Hz (0.1s) |
| Transmission in automatic mode |
Real-time and synchronic |
| Mains supply |
Built-in accumulator, 115V/230V, 50-60Hz |
| Dimensions |
276 x 168 x 74mm |
| Weight |
Approx. 2kg |
Standard and optional accessories for BTL-08
SD1
The summary of main
features
-
Compact three channel ECG with records and prints from 12 leads
-
Graphic display
-
Combined alphanumeric and functional keyboard
-
Storing of 6 ECG Records
-
Mains or battery operation
-
Automatic and manual mode
-
Long ECG recording
-
Real-time and synchro mode
-
6 user-defined profiles
-
Indication of contact of each electrode
-
Pacemaker detection
-
Defibrillation protection
|
|
Expand your ECG with
the following options
-
Full analysis and interpretation in words
-
Connection to a PC with the Win software
-
Upgrade to stress test system with the BTL-08 Win Ergo software
Technical specifications
| Number of channels |
3 |
| Number of leads |
12 |
| Keyboard |
Combined alphanumeric and functional |
| Paper width |
58mm |
| Paper speed |
5, 10, 25, 50mm/s |
| Sensitivity |
2.5, 5, 10, 20mm/mV |
| User-defined profiles |
6 |
| Filters |
Adaptable mains 50-60Hz, muscular 35Hz,
baseline filters: 0.05Hz (3.2s), 0.11Hz (1.5s), 0.25Hz (0.6s),
0.50Hz (0.3s), 1.50Hz (0.1s) |
| Transmission in automatic mode |
Real-time and synchronic |
| Mains supply |
Built-in accumulator, 115V/230V, 50-60Hz |
| Dimensions |
276 x 168 x 74mm |
| Weight |
Approx. 2kg |
Standard and optional accessories for BTL-08
SD3
|
The Six Channel ECG Recorder with Graphic Display.
The summary of main features
-
Six channel ECG with records and prints from 12 leads
-
Graphic display
-
Combined alphanumeric and functional keyboard
-
Easy-to-use operation
-
Storing of last 5 records
-
Averaging of ECG curves with marks
-
Long ECG recording
-
Operating from mains or rechargeable battery
-
Automatic and manual operation
-
Synchronic and real-time transmission in automatic mode
-
6 user-defined profiles
-
Indication of contact of each electrode
-
Pacemaker detection
-
Defibrillation protection
-
Expand your ECG with the following options
-
-
Full analysis and interpretation in words
-
Connection to a PC with the
BTL-08 Win software
-
Upgrade to stress test system with the BTL-08 Win Ergo software
-
ECG cart
|
 |
Technical specifications
| Number of channels |
6 |
| Number of leads |
12 |
| Displayed leads |
1 |
| Display |
LCD, 70 x 36mm |
| Keyboard |
Combined alphanumeric and functional |
| Paper width |
58mm |
| Paper speed |
5, 10, 25, 50mm/s |
| Sensitivity |
2. 5, 5, 10, 20mm/mV |
| User-defined profiles |
6 |
| Filters |
Adaptable mains 50-60Hz, muscular 35Hz,
25HZ, baseline filter 0.05Hz (3.2s), 0.11Hz (1.5s), 025Hz
(0.6s), 0.5Hz (0.3s), 1.50Hz (0.1s) |
| Transmission in automatic mode
|
Real-time, synchronic |
| Number of stored records |
6 |
| Maximum length of stored
record |
10s |
| Mains supply |
Built-in accumulator, 115V/230V, 50-60Hz |
| Dimensions |
276 x 168 x 74mm |
| Weight |
Approx. 2kg |
Standard and optional accessories for BTL-08
SD3
 |
The Three Channel ECG Recorder with Graphic Display
The summary of main features |
-
3-channel ECG for printing and recording from 12 leads
-
Functional design with graphic display
-
Combined alphanumeric and functional keyboard
-
Easy-to-use operation
-
112mm ECG paper width
-
Averaging of ECG curves with marks
-
Long ECG recording
-
Mains or battery operation
|
- Automatic and manual operation
- Synchronic and real-time transmission in automatic
mode
- Indication of contact of each electrode
- Pacemaker detection
- Defibrillation protection
- Expand your ECG with the following options
|
|
|
The Twelve Channel ECG Recorder with Graphic Display
The summary of main features
|
-
12-channel ECG for simultaneous printing and recording from 12 leads
-
Functional design with graphic display
-
Combined alphanumeric and functional keyboard
-
Easy-to-use operation
-
Storing of last 5 records
-
Averaging of ECG curves with marks
-
Long ECG recording
-
Mains or battery operation
-
Automatic and manual operation
-
Synchronic and real-time transmission in automatic mode
-
Parameters can be pre-set and saved into 10 user-defined profiles
-
Indication of contact of each electrode
|
- Pacemaker detection
- Defibrillation protection
-
Expand your ECG with the following options
- Full analysis and interpretation in words
- Pacemaker performance analysis
-
Spirometry attachment
- Connection to a PC with the BTL-08 Win software
- Upgrade to stress test system with the BTL-08
Win Ergo software
- ECG cart
|
Technical
specifications
|
Number of channels |
12 |
|
Number of leads |
12 |
|
Displayed leads |
1 |
|
Display |
LCD, 70 x 36mm |
|
Keyboard |
Combined alphanumeric and functional |
|
Paper width |
112mm |
|
Paper speed |
5, 10, 25, 50mm/s |
|
Sensitivity |
2.5, 5, 10, 20mm/mV |
|
User-defined profiles |
10 |
|
Filters |
Adaptable mains 50-60Hz, muscular 35Hz, 25Hz, baseline
filter 0.125Hz (1.5s), 0.25Hz (0.6s), 0.5Hz (0.3s),
1.5Hz (0.1s) |
|
Transmission in automatic mode |
Real-time, synchronic |
|
Number of stored records |
5 |
|
Maximum length of stored record |
10s |
|
Mains supply |
Built-in accumulator, 115V/230V, 50-60Hz |
|
Dimensions |
330 x 270 x 70mm |
|
Weight |
Approx. 3.2kg |
 |

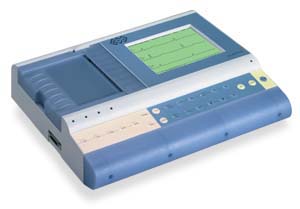

The Twelve Channel ECG Recorder with
Touch Screen. The summary of main features: |
-
Advance 12-channel ECG for simultaneous printing and recording
from 12 leads
-
5.7" touch screen for simple operation of the unit
-
Display of 3 leads
-
Storing of last 80 records
-
Averaging of ECG curves with marks
-
Long ECG recording
-
Mains or battery operation
-
Automatic and manual operation
-
Synchronic and real-time transmission in automatic mode
-
Parameters can be pre-set and saved into 10 user-defined
profiles
-
Indication of contact of each electrode
-
Pacemaker detection
-
'Fuzzy' filtration
-
Defibrillation protection
|
-
Expand your ECG with the following
options
-
Full analysis and interpretation in words
-
Pacemaker performance analysis
-
Spirometry attachment
-
Connection to a PC with the
BTL-08
Win software
-
Upgrade to stress test system with the BTL-08 Win
Ergo software
-
ECG cart
|
Technical specifications
|
Number of leads |
12 |
|
Displayed leads |
3 |
|
Display |
5.7'' touch screen, 90 x 125mm |
|
Keyboard |
Combined alphanumeric and functional, touch
screen buttons |
|
Paper width |
112mm |
|
Paper speed |
5, 25, 50mm/s |
|
Sensitivity |
2.5, 5, 10, 20mm/mV |
|
User pre-set profiles |
10 |
|
Number of stored records |
80 |
|
Filters |
Adaptable mains 50-60Hz, muscular 35Hz, 25HZ,
baseline filter 0.125Hz (1.5s), 0.25Hz (0.6s),
0.5Hz (0.3s), 1.5Hz (0.1s), �fuzzy� filtration |
|
Transmission in automatic mode |
Real-time, synchronic |
|
Maximum length of stored record |
60s |
|
Mains supply |
Built-in accumulator, 115V/230V, 50-60Hz |
|
Dimensions |
330 x 270 x 70mm |
|
Weight |
Approx. 3.2kg |
Standard and optional accessories for BTL-08 MT
 |
The Twelve Channel ECG Recorder with Touch Screen
designed espetially for cardiology departments and
clinics.
|
-
Advance 12-channel ECG for simultaneous printing and recording
from 12 leads
-
5.7" touch screen for simple operation of the unit
-
Display of 12 leads
-
Storing of last 120 records
-
Averaging of ECG curves with marks
-
Long ECG recording
-
Mains or battery operation
-
Automatic and manual operation
-
Synchronic and real-time transmission in automatic mode
-
Parameters can be pre-set and saved into unlimited user-defined
profiles
|
-
Indication of contact of each electrode
-
Pacemaker detection
-
'Fuzzy' filtration
-
Defibrillation protection
-
ECG cart
-
Print on 210 mm thermal paper (roll, fax, folded
paper)
|
 |
The Twelve Channel ECG Recorder with Colour Touch
Screen designed espetially for cardiology departments
and clinics. |
-
Advance 12-channel ECG for simultaneous printing and recording
from 12 leads
-
8.4" TFT Colour touch screen for simple operation of the unit
-
Display of 12 leads
-
Storing of last 120 records
-
Averaging of ECG curves with marks
-
Long ECG recording
-
Mains or battery operation
-
Automatic and manual operation
-
Synchronic and real-time transmission in automatic mode
-
Parameters can be pre-set and saved into unlimited user-defined
profiles
-
Indication of contact of each electrode
-
Pacemaker detection
-
'Fuzzy' filtration
-
Defibrillation protection
-
ECG cart
-
Print on 210 mm thermal paper (roll, fax, folded paper)
|
|
