GYNAECOLOGIE
Nadrukkelijk worden onder de vermelde kritische instrumentarium die
moeten worden gesteriliseerd ook het speculum en de uterussonde vermeld,
omdat deze besmet kunnen zijn met het humane papilloma virus (HPV) dat,
behalve in de sterilisator, zeer moeilijk te elimineren is .
BRON : Stichting Werkgroep Infectie Preventie
Nederland
Infectiepreventie in de
huisartsenpraktijk
Specula
|

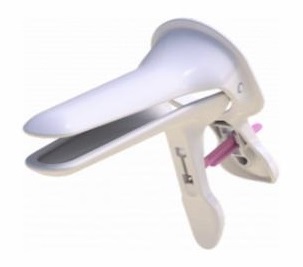

White Orchid Bridea Vaginaal Speculum
- optimaal gebruiksgemak
- enkelhandige precisie voor arts
- patiëntvriendelijk door verhoogd comfort
- naar binnen gebogen/gladde randen vergemakkelijken Cervix manipulatie
- voelt nooit koud dus voorverwarming overbodig
- optimaal zicht door sterk verbeterde lichtreflectie door de witte kunststof
|

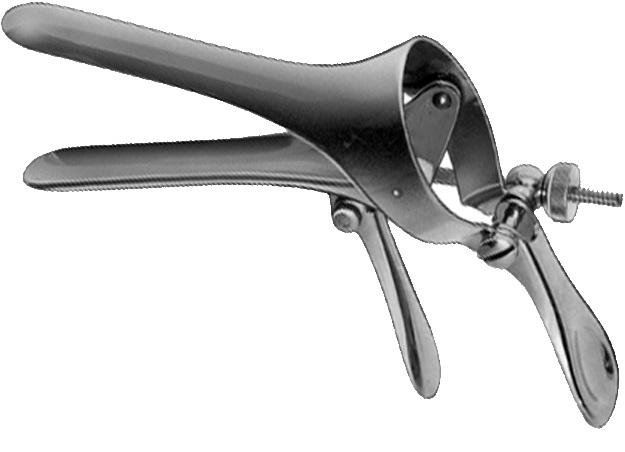

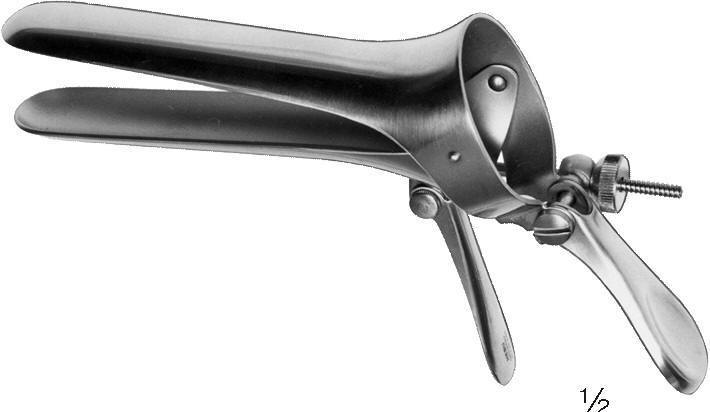

Cusco met middenschroef hebu kwaliteit

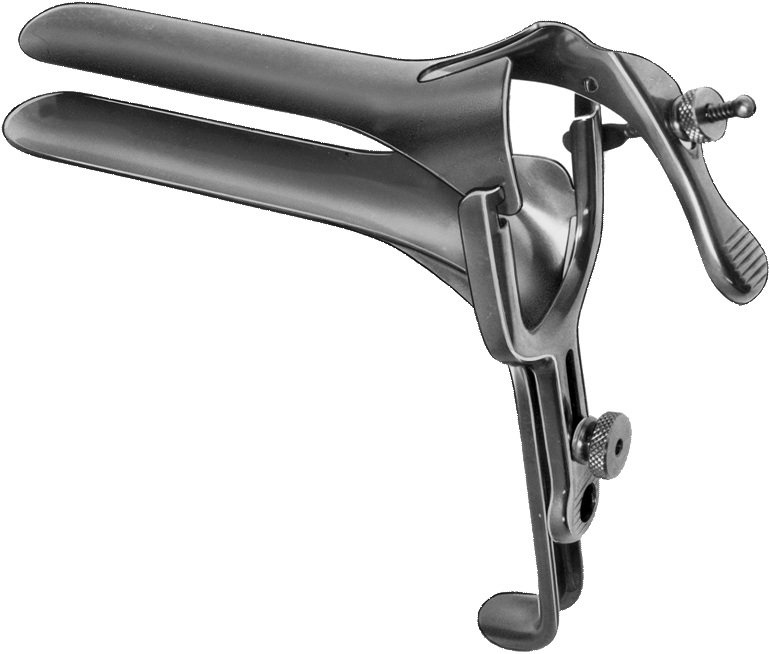

Grave hebu kwaliteit

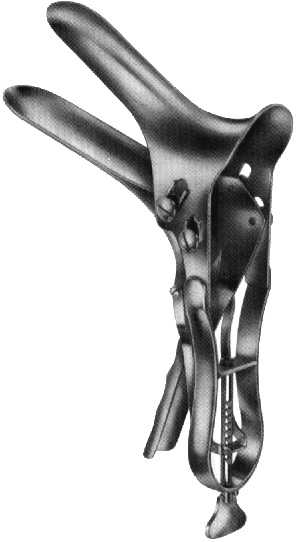

Seyffert hebu kwaliteit
Collin.
hebu kwaliteit

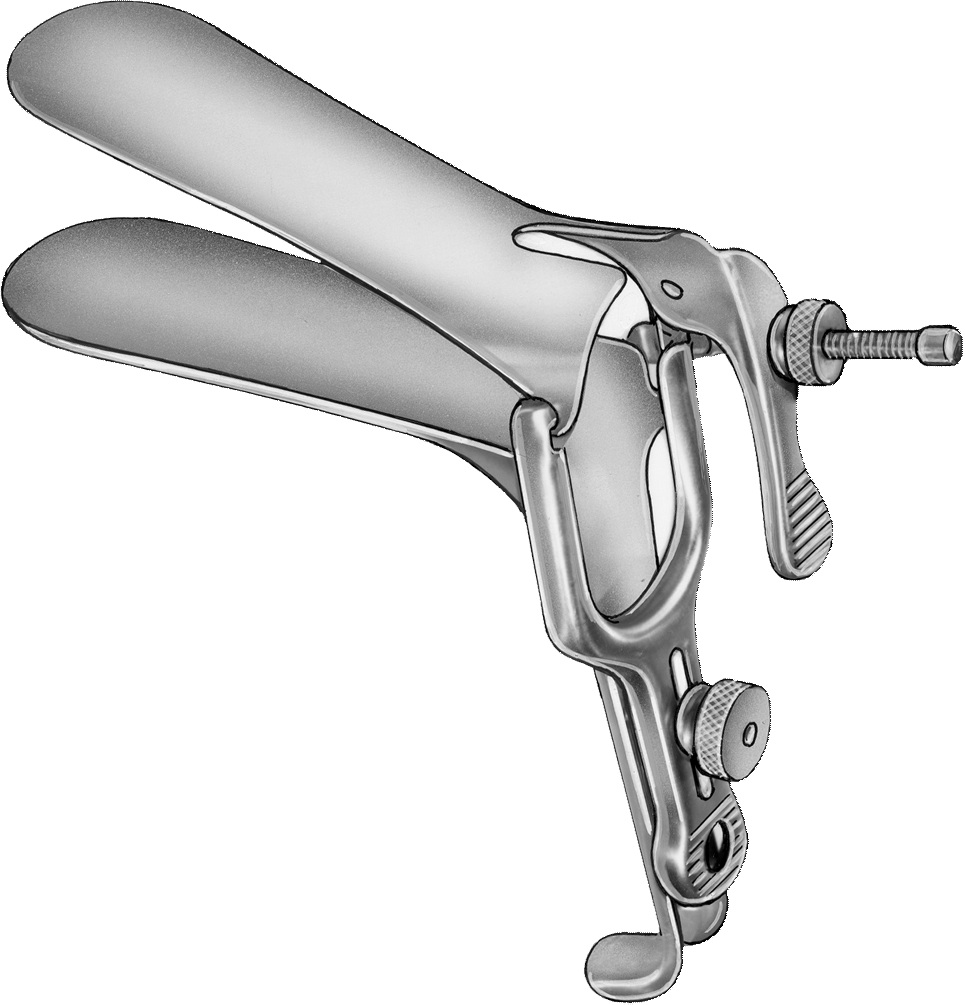

Pederson hebu kwaliteit

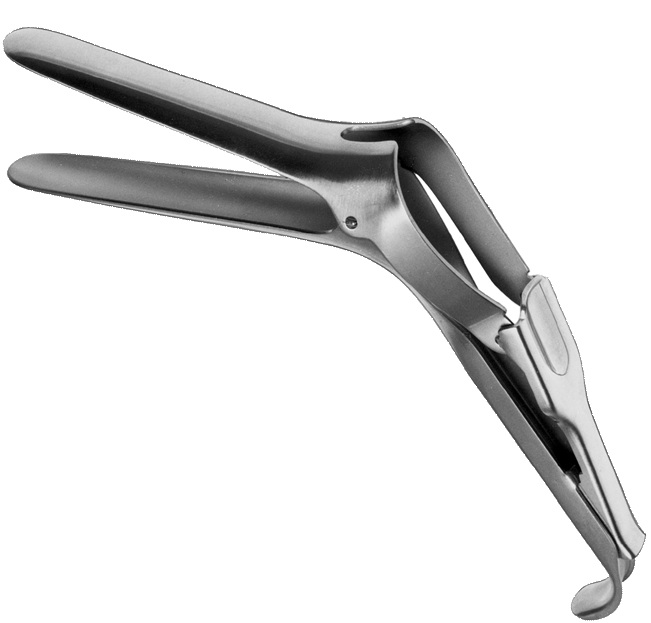

Semm hebu kwaliteit
Specula voor laser electrochirurgie

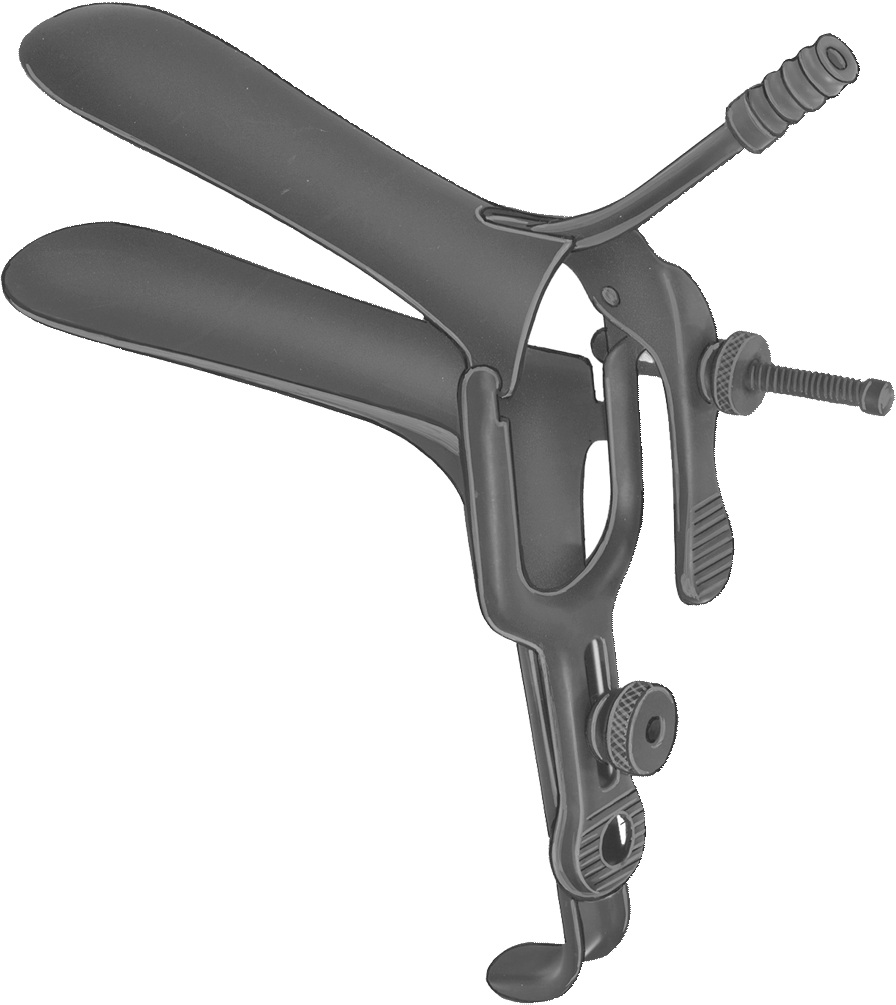

Grave met afzuiging hebu
kwaliteit

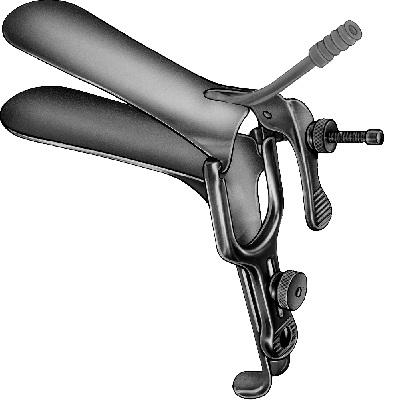

Pederson met afzuiging hebu kwaliteit
|
|
|

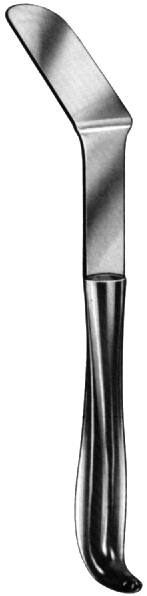

Doyen |

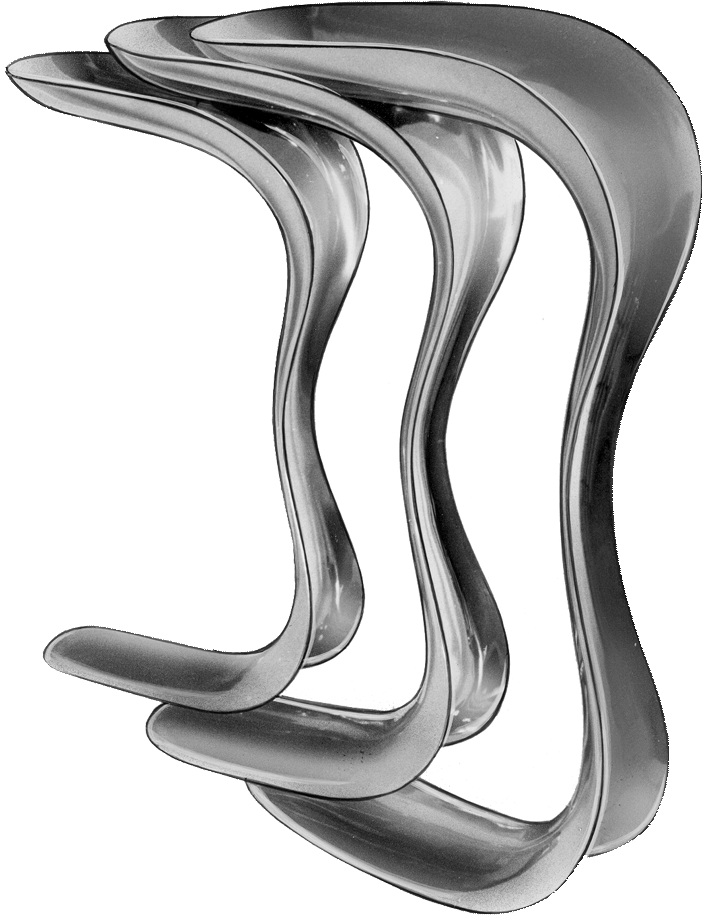

Simms |
Sims uterussonde |
|
|
|
Novak biopsiecurette |

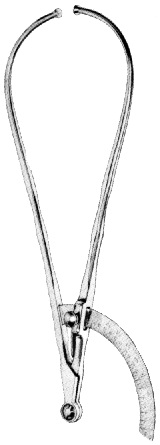

Martin pelvimeter |

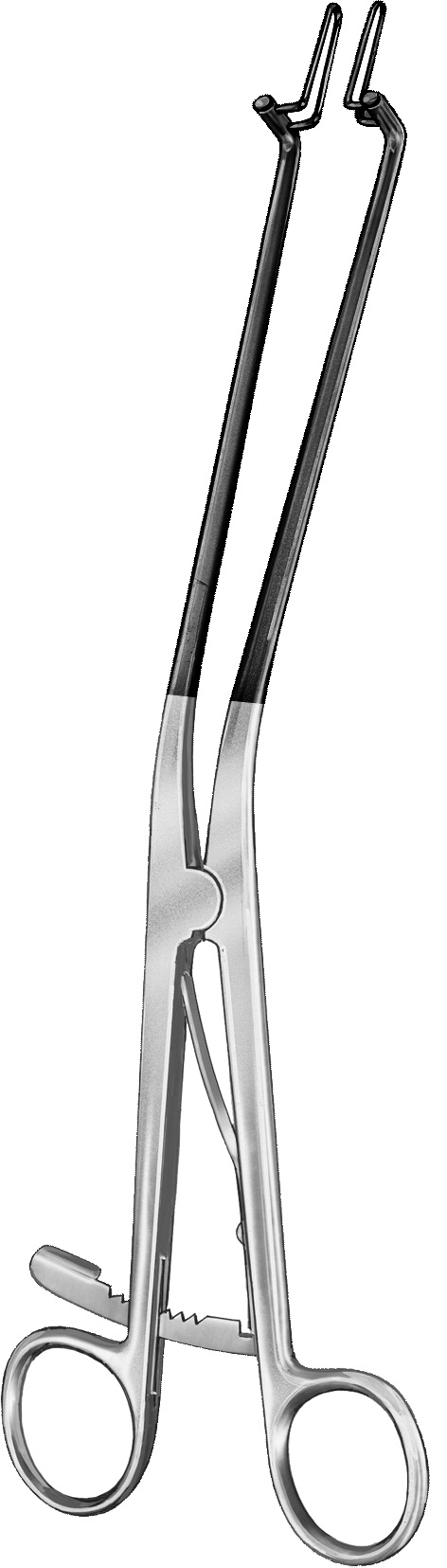

Endospecula Kogan |
|
|
|

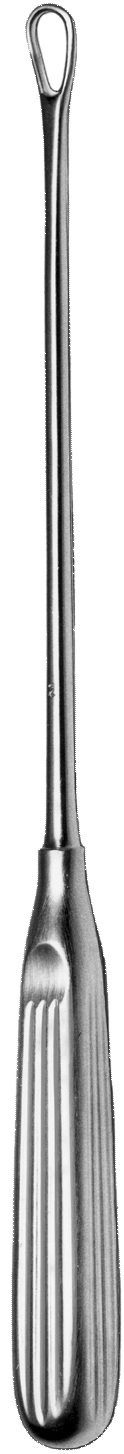

Thomas curette |
Recamier |

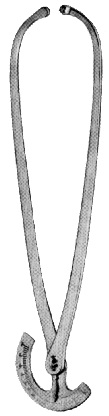

Collin pelvimeter |
|
|
|

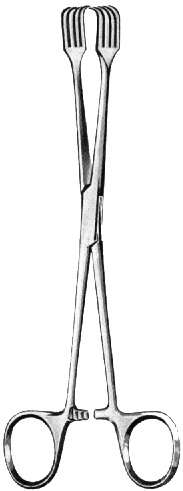

Czerny hakentang |

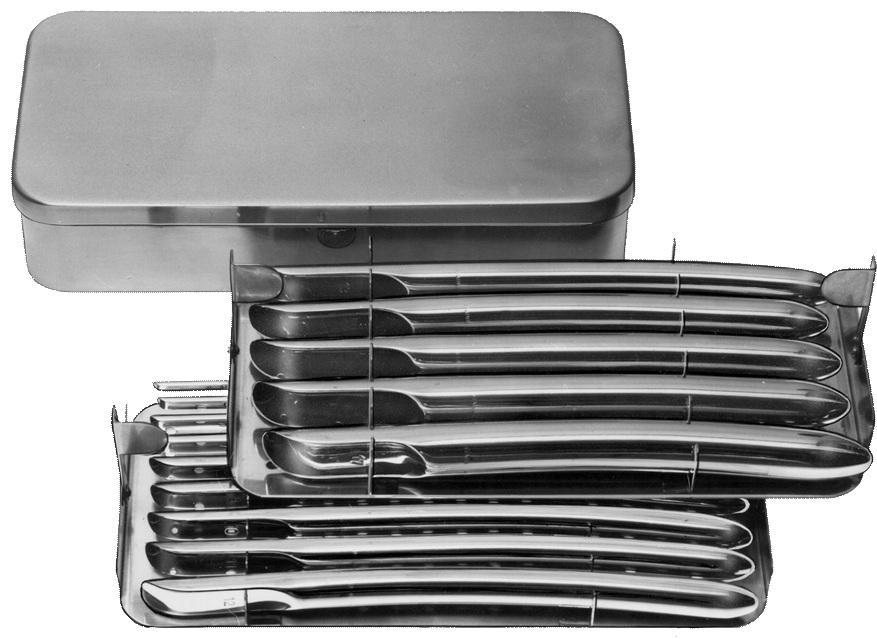

Hegar Dilatatoren |

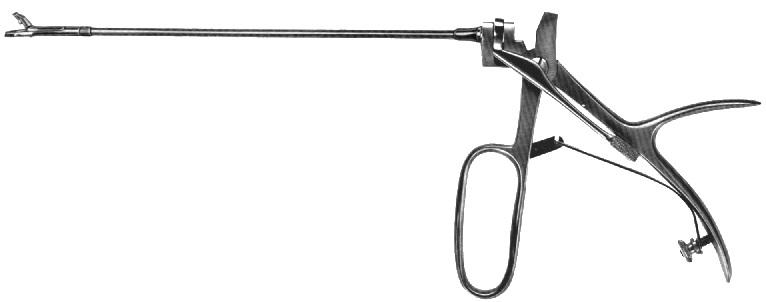

Biopsietang Schumacher |
|
Hebu speculum Kristeller |
Hebu speculum Cusco |
Hebu speculum Grave |
Hebu speculum Seyffert |
Hebu speculum Colling |
Hebu speculum Pederson |
|
Hebu speculum Grave met afzuigtube |
Hebu speculum Pederson met afzuigtube |
Hebu specullum Semm |
Hebu specullum Sims |
Hebu specullum Kallmorgen |
Hebu specullum Breisky |
|
Hebu specullum Doyen |
Hebu specullum Mathieu |
Hebu lateraak vaginake retractor |
Hebu endospecula geisoleert voor laser en
elektrochirurgie Kogan |
Hebu Laserinstrumenten |
Hebu dilatatoren Hegar |
|
Hebu uterussonde Sims |
Hebu Hysterometrie |
Hebu uterussonde Braun |
Hebu hakentangen Duplay Schröder-Braun Skene Braun,
Staude Moore Czerny Schröder Teale Jakobs, Museux |
Hebu polieptangen Noto Kelly Doyen |
Hebu Collin Dartigues Somer Doyen |
|
Hebu biopsie tangen Tischler Kevorkian , Baby
Tischler, Mini Tischler, Coppelson, Burke , Baggish, Uni Tischler,
Schumacher, Eppendorf, Wittner, Schubert recht en gebogen , Berger,
Alexander, Van Doren, Thoms Gaylor enz |
Hebu biopsie curettes Novak, Randall Rotokürette,
Kevorkian, Muenchen, Novak Schoeckaert |
Hebu Uteruscurettes Thomas, Sims, Recamier, Bumm,
Blake , Zweifel, Simon Schroeder enz |
Hebu pelvimeters Collin Martin enz |
|
Hebu
materiaal vraag onze prijs |

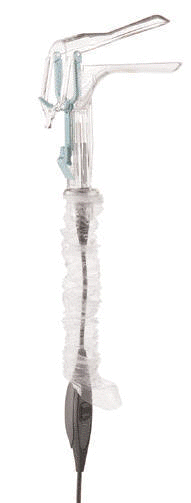

26,wa78812 Verlichtingssysteem Kleenspec met transfo
en knop aan/uit
580
|
58001S 580 Series Disposable Vaginal Specual
with Sheath, Medium (shown with 78810, Illumination System
Part Number: 580 00S
KleenSpec® 580 Series Disposable Vaginal Specula with Sheath, Small
(case of 80)
Part Number: 580 01S KleenSpec® 580 Series Disposable Vaginal Specula with Sheath, Medium
(case of 80)
Part Number: 580 04S
KleenSpec® 580 Series Disposable Vaginal Specula with Sheath, Large
(case of 60) |
|
|

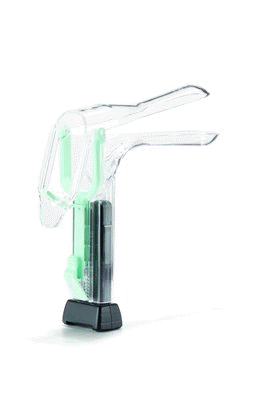

Draadloos verlichtingssysteem Kleenspec 790 series
te gebruiken met de 590 Vaginale specula
|
Helder en wit licht Draadloos en heroplaadbaar Automatische ON/OFF het verlichtingssysteem gaat automatisch aan als
ge het verlichtingssysteem in de specula schuift Eenvoudiger dan met
een hoofdlamp.
26,wa590
00 |
Small per 96 |
26,wa590
01 |
Medium per 96 |
26,wa590
04 |
Large per 76 |
|
|
|
26,wa73915 |
|
|
oplader
Meer
info |
26,wa79915 ; |
Draadloos verlichtingssysteem met oplader |
|
Meer info |
26,wa79925 |
Draadloos verlichtingssysteem met oplader + snoer |
|
Meer info |
26,wa79000 |
|
|
Draadloze
illuminator |
|
Meer
info |

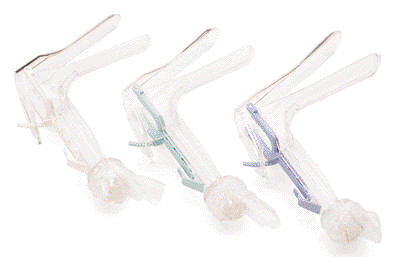

KleenSpec Disposable Vaginal Specula
|
Code |
Description |
|
|
59000 |
KLEENSPEC 590 PREMIUM VAG SPEC SM CASE |
|
|
59001 |
KLEENSPEC 590 PREMIUM VAG SPEC MD CASE |
|
|
59004 |
KLEENSPEC 590 PREMIUM VAG SPEC LG CASE |
|
KleenSpec Series 580 Premium Illuminated
Disposable Vaginal Specula with sheath
|
58000S |
Case of 80 SMALL 580 Series Disposable Vaginal Specula with
sheath: 20/Box; 4 Boxes/Case. |
|
|
58001S |
Case of 80 MEDIUM 580 Series Disposable Vaginal Specula
with sheath: 20/Box; 4 Boxes/Case. |
|
|
58004S |
Case of 60 LARGE 580 Series Disposable Vaginal Specula with
sheath: 15/Box; 4 Boxes/Case |
|
KleenSpec 586 Series Disposable Vaginal
Specula
|
58600-L |
Case of 100 SMALL 586 Series Disposable Lubricated Vaginal
Specula, 25/Box; 4 Boxes/Case |
|
|
58601-L |
Case of 100 MEDIUM 586 Series Disposable Lubricated Vaginal
Specula: 25/Box; 4 Boxes/Case |
|
KleenSpec Illumination System for Disposable
Vaginal Specula
|
79900 |
KLEENSPEC Disposable Vaginal Specula Cordless Illuminator |
|
|
79912 |
Cordless Illuminator with charging station (EUR) |
|
|
78812 |
Complete Kleenspec Disposable Vaginal Specula illumination
sustem with On/Off switch and transformer (EU) |
|
|
73412 |
Transformer only for 580 and 586 Series Illumination System
(EU) |
|
|
78800 |
6V Halogen Light Handle with On/Off Switch for 580 and 586
Series Illumination System |
|
|
78600 |
Case of 36 Expendable Illuminators To Connect 78105-ISO
Illumination System to 586 Series Vaginal Specula: 6
illuminators /Box; 6 Boxes/Case (can be sterilized 50 times) |
|
|
07800-U |
Replacement 6v Halogen Lamp for No. 78105-ISO |
|
|
08800-U |
Replacement 6v Halogen Lamp for No. 78815-ISO |
|
|
59000 |
KLEENSPEC 590 PREMIUM VAG SPEC SM CASE (4x24 pcs) |
|
|
59001 |
KLEENSPEC 590 PREMIUM VAG SPEC MD CASE |
|
|
59004 |
KLEENSPEC 590 PREMIUM VAG SPEC LG CASE |
|
|
59005 |
KLEENSPEC 590 SMOKE TUBE VAG SPEC SM CASE |
|
|
59006 |
KLEENSPEC 590 SMOKE TUBE VAG SPEC MD CASE |
|
|
73912 |
Charging Station for Cordless Illuminator (EU) |
|
|
74392 |
Power Supply (EUR) |
|

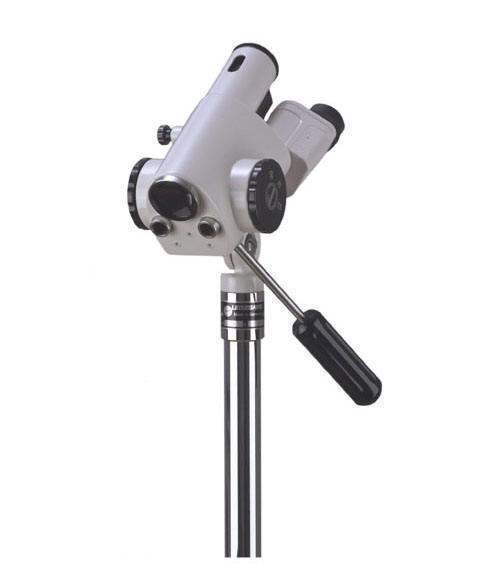

Model 1 light/1D light
|
The models 1 light and 1D light are the low priced entry models of
the Leisegang company with all the Leisegang quality characteristics.
The adjustment possibilities of both models are limited to the slope
of the colposcope.
In order to be able to move the colposcope in horizontal direction
too, use a Leisegang "Swing-O-Matic" or a Leisegang "Balance-O-Matic"
mount.
The model 1light has a 15x fixed visual magnification.Essentially,
the model 1D light is constructed identically to the model 1 light.
For more flexibility, it possesses a 3x drum changer for
magnification instead of fixed single magnification.
These models will be delivered in standard color RAL9002.
Special colors are available for an extra charge. |
|
|
Technical facts 1 light
- magnification: 15x fixed visual
magnification
- lighting: 12volt/20watt halogen
Technical facts 1D light
- magnification: 7.5/15/30x
magnification
- lighting: 12volt/ 20watt halogen
Model 1/1D(S)
|
Beside the models 1 light and 1D, the model 1 is a low
priced entry model with extended Leisegang achievement and
quality characteristics.
It possesses a 15x fixed magnification in the standard
design.
Unlike the models of the light series, there is a
possibility to comfortably adjust this model in a vertical,
as well as a horizontal direction.
The model 1D is
equipped with a 3x drum changer for magnification with
7.5/15/30-x or 3.75/7.5/15 -x magnification (s-version).
These models will be delivered in standard color RAL9002.
Special colors are available for an extra charge.
For optimum flexibility at the work place we recommend a
Leisegang "Swing-O-Matic" or a Leisegang "Balance-O-Matic"
mount. |
|
|
Technical facts 1DF(S)
- magnification: 7.5/15/30x (s-model:
3.75/7.5/15x)
- setting horiz./vert. in mm: ± 20 ±
40
- lighting: 12volt/75watt cold light
halogen
Technical facts 1DFW
- magnification: 7.5/15/30x
- setting horiz./vert. in mm: ± 20 ±
40
- lighting: 12volt/75watt cold light
halogen

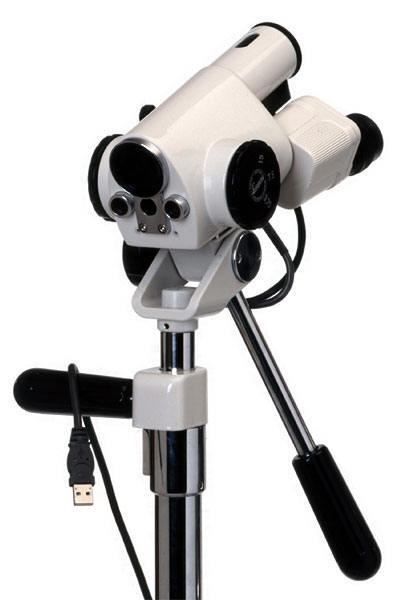

Model 3MV
|
Model 3MV is a specific Model 1D with integrated USB-Camera.
The
performance of this camera is nearly the same than the offered
standard video camera, (see accessories also).
The photographic magnification has three steps also than the visual
one.
See Technical details ; also.
Excluding the 3 m long integrated USB-Cable no additional line for
the camera is necessary.
Plug in to PC or Laptop, load driver
software and expand your documents very comfortable with pictures.
We recommend the use of our LeiseCap-software which gives a
comfortable connection between patient, findings and course of
disease.
(See
LeiseCap-Software also)
|
|
|
Videocamera Specification
Active Pixels
|
765 x 582
|
Resolution
|
= 460 TVL
|
White balance mode
|
AWB auto white mode Fixed mode selectable via software
|
Shutter speed
|
1/50 to 1/100,000
|
Iris control
|
CCD Iris default
|
Complete Workstation WSB
The Workstation is a compact unit with Video-Colposcope 3MV and
picture management
LeiseCap.
It consists particularly:
Video-Colposcope 3MV integrated USB-Camera and three step
magnification
Comfortable Balance-o-Matic Stand
5-wheel spider base
Footswitch
Tray and
LeiseCap-Software
The WSB offers a high measure in independence and flexibility
Colposcopes Leisegang with LED
LEISEGANG Colposcopes - now with LED illumination
LED - the light source of the future
LED is the shortcut for light-emitting-diode. The light of LED's is
produced through semiconductor effects and not through the heating of a
filament, used by conventional standard bulbs.
The light efficiency of an
LED is with about 30% more than 6-times higher than a 3% to 5% light
efficiency of conventional bulbs.
So far LED's were mainly used for status
displays in different colours, but today light intensive white-light-LED's
are more and more used as an quite better substitute for halogen lamps in
medicine as well as in automobile industry.
Leisegang now offers for our colposcopes a LED illumination with
highest light intensity, which is comparable to an standard 150W halogen
lamp.
Through the use of a completely different optical spectrum, the LED
light provides a highly improved contrast and with it even on 2D pictures a
very three-dimensional impression.
That's why the use of a green filter is
hardly necessary.
Leisegang LED colposcopes utilize LED's with a life span of more
than 10,000 hours or approx.
10 years with an daily operating time of 4
hours.
So it is a very much higher than the life span of halogen-cold
light-lamps with approx. 50 hours. Obviously you can safe a lot of money by
using a LED colposcope.
|
Competitors
|
LEISEGANG Halogen
|
LEISEGANG LED illumination
|
Power input
|
100 W / 150 W
|
75 W
|
16 W
|
Light efficiency
|
4,5 %
|
4,5 %
|
30 %
|
Remaining light output
|
4,5 W / 6,75 W
|
3,4 W
|
4,8 W
|
Reduction through coupling into optical fibre
|
80 %
|
80 %
|
n.a.
|
Remaining light output at the object
|
3,6 W / 5,4 W
|
2,7 W
|
n.a.
|
Reduction through beamsplitter
|
50 %
|
No reduction
|
No reduction
|
Resulting light output
|
1,8 W / 2,7 W
|
2,7 W
|
4,8 W
|
|
|
|
|
Capability characteristics of all Leisegang
colposcopes in view
model |
magnifications
|
|
lighting
|
|
normal |
S-version |
photo |
setting horizontal vertikal[mm] |
12V / 20W Halogen |
12V /75WKaltlicht-Halogen |
1 light
|
15
|
|
-- |
-- |
x |
|
1D light
|
7,5/15/30
|
|
-- |
-- |
x |
|
|
|
|
|
|
|
|
1
|
15
|
|
-- |
± 20 / ±40
|
x |
|
1D
|
7,5/15/30
|
3,75/7,5/15
|
-- |
± 20 / ±40
|
x |
|
|
|
|
|
|
|
|
1DF
|
7,5/15/30
|
3,75/7,5/15
|
-- |
± 20 / 40
|
|
x |
1DFW*
|
7,5/15/30
|
|
-- |
± 20 / ±40
|
|
x |
|
|
|
|
|
|
|
3ML
|
7,5/15/30
|
3,75/7,5/15
|
7,5/15/30
|
± 20 / ±40
|
x |
|
3MLF
|
7,5/15/30
|
3,75/7,5/15
|
7,5/15/30
|
± 20 / ±40
|
|
x |
3MLFW*
|
7,5/15/30
|
|
7,5/15/30
|
± 20 / ±40
|
|
x |
3MV
|
7,5/15/30
|
|
7,5/15/30
|
± 20 / ±40
|
x |
|
3DLF
|
7,5/15/30
|
3,75/7,5/15
|
15
|
± 20 / ±40
|
|
x |
3DLFW*
|
7,5/15/30
|
|
15
|
± 20 / ±40
|
|
x |
4**
|
10
|
|
|
|
6V/ 10W
|
|
- * with comfortable 45º inclined
optics
- ** shortly no longer available
face field diameters when magnification:
|
|
90 mm:
|
3,75-fold
|
45 mm:
|
7,5-fold
|
22,5 mm:
|
15-fold
|
11 mm:
|
30-fold
|
MEER INFO www.leisegang.de
Colposcopen Welch Allyn : algemeen
